Post Info TOPIC: 33920-77E00 -1997 SV620 Vitara Estate H20a MT - Aus


Guru

Status: Offline
Posts: 1360
Date:
33920-77E00 -1997 SV620 Vitara Estate H20a MT - Aus
Permalink



I don't have one of those, the EU versions that I have are quite different.


__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Newbie

Status: Offline
Posts: 1
Date:
Permalink


İ have the same ecu and same sv620.

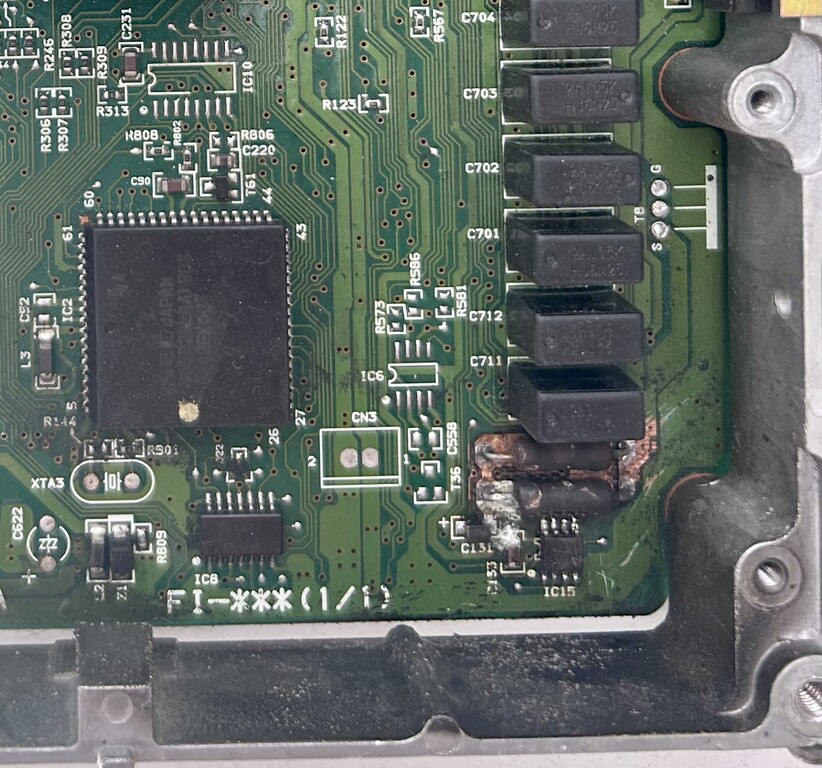

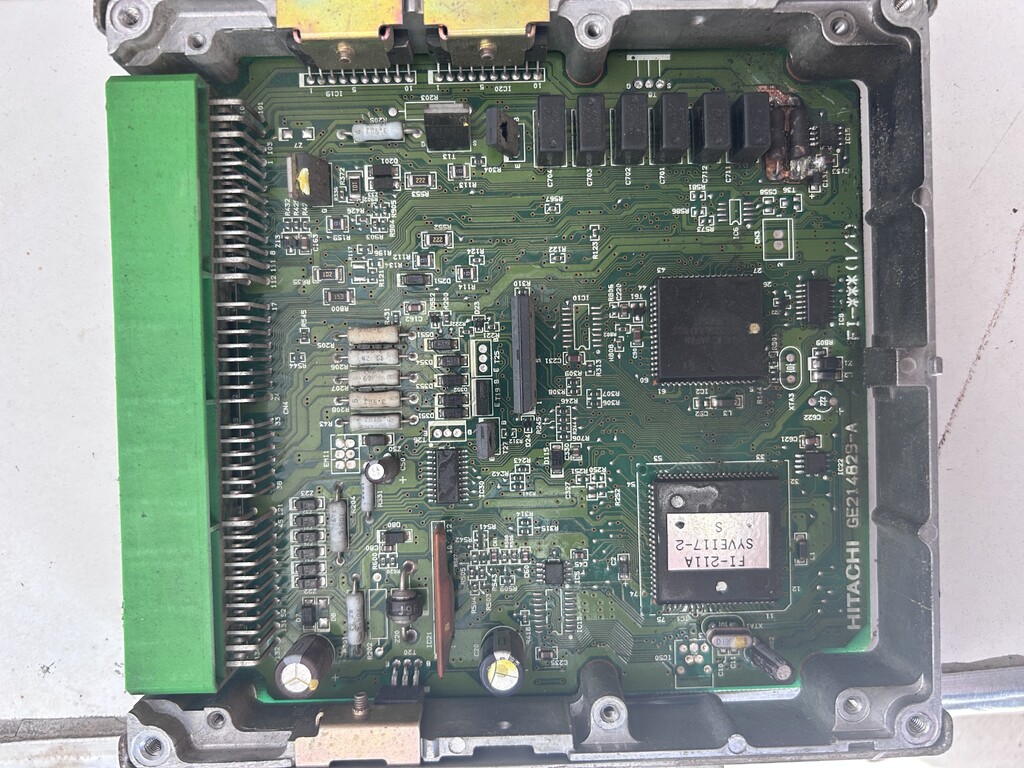

And ecu has burned damaged.  my car's ecm/ ecu was a short circuit result of a burn, I put it in the photo, if there is one from this card in my hand, and if there is anyone can send me the circuit diagram or the photo on the back, I would be very grateful because I can't provide this card around here, unfortunately. I would especially appreciate it if you send me a detailed photo of the burned part in the second photo. Back side of the ecu pcb.the vehicle cannot run in idle due to the burn on the current ecu damage, by the way, when I remove the maf sensor, the vehicle can run in idle and there is no problem, but there is no traction in the vehicle, when I plug in the socket of the maf sensor, the traction improves in the vehicle, but there is a problem of stall and not being able to stop at idling, the burn part of the ecu, the part of the vehicle that processes the other ignition and maf sensor information, how can you help me in this?



Please help me.



Attachments
__________________


Guru

Status: Offline
Posts: 1360
Date:
Permalink


Some one sent me these pics a while back, I just came across them again:











__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.
