Post Info TOPIC: 33920-70E40 and Rhinoview


Guru

Status: Offline
Posts: 1211
Date:
33920-70E40 and Rhinoview
Permalink



Thats the same code that mine returns so I don't know of any reason why the software wouldn't work. I now have four different ECUS that all return the 1112 ID so I am planning on doing some more tests when I get my new test set working. Please provide more details of your hardware.

-- Edited by Rhinoman on Monday 5th of April 2010 11:37:11 PM

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Member

Status: Offline
Posts: 12
Date:
Permalink


James: here image of my ECU



__________________
Suzuki Vitara 3P - JX 1996 ( my 1st Dream )
Honda CB-750  F -  1980 (on restauration)
VW  Golf IV 1.6 ( my 2nd dream )


Guru

Status: Offline
Posts: 1211
Date:
Permalink


Hi
I am setting up a bench test, I have obtained another ECU (33920-56B80) that returns 1112 as its ID so I'm going to run tests on that one as well to verify that it behaves the same as the one in my car (33920-70E10).
I think that there may be a second identification number which indicates a variant. Can you lease set your ECU up with your interface and use RS232 Hex Comm Tool (or something similar) to check the address 0B, see the image below:

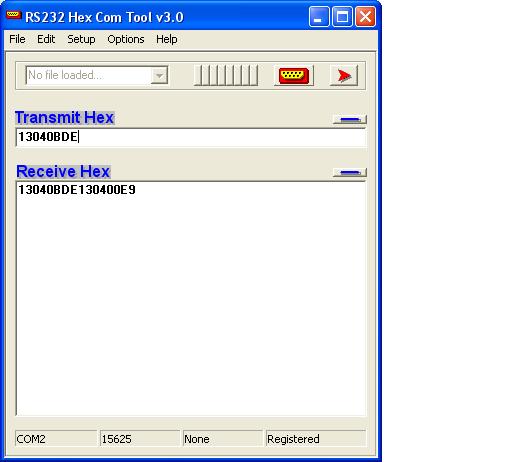

ID test

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Member

Status: Offline
Posts: 12
Date:
Permalink


Rhinoman wrote:

Can you please provide some more information on your vehicle.

ENGINE  G16A 8 VALVE-

Do you have an immobiliser with a chip in the key? NO
Do you have an oxygen sensor in the exhaust?      YES
Do you have an EGR valve?  YES

if so is it the vacuum type  YES

 or the motorised type?

Thanks
James








__________________
Suzuki Vitara 3P - JX 1996 ( my 1st Dream )
Honda CB-750  F -  1980 (on restauration)
VW  Golf IV 1.6 ( my 2nd dream )


Guru

Status: Offline
Posts: 1211
Date:
Permalink


Can you please provide some more information on your vehicle.
Do you have an immobiliser with a chip in the key?
Do you have an oxygen sensor in the exhaust?
Do you have an EGR valve? if so is it the vacuum type or the motorised type?

Thanks
James

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Guru

Status: Offline
Posts: 1211
Date:
Permalink


Source code looks OK, it seems to work fine on my 1112 ECU. Some interfaces have a problem with the voltage drop during starting, make sure that you start the engine before you plug in the interface and start the software.
Cheers
James

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Member

Status: Offline
Posts: 12
Date:
Permalink


Hello.

James: could check the source code and know because freezing the data Rhinoview 0.5?
with 1112 ECU (33920-70E40)


__________________
Suzuki Vitara 3P - JX 1996 ( my 1st Dream )
Honda CB-750  F -  1980 (on restauration)
VW  Golf IV 1.6 ( my 2nd dream )


Guru

Status: Offline
Posts: 1211
Date:
Permalink


PM sent

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Senior Member

Status: Offline
Posts: 201
Date:
Permalink


Rhinoman wrote:

There was a guy in Russia who I worked with a couple of years ago, the 1701 ECU data came from him. He had access to a factory scantool so maybe he has expanded the software that he wrote.
A link would be good.

What is the ID number of your ECU?



James

The local Suzuki dealership has a Tech 2 - I have a fairly good relationship with a couple of the people there (including the GM, who, in fact, was quite impressed when I showed him Rhinoview 0.5), so if that can be used to pull data from my ECU that would assist in any way - let me know and I'll talk to him.





__________________


Guru

Status: Offline
Posts: 1211
Date:
Permalink


The first link the software won't run. The second link is Regressor's code, it displays the ECU ID 1112 or whatever but it looks like it will only properly display data from the 1701 ECU, 1701 is Regressors own Suzuki Escudo.

Edit: the first software runs on XP, doesn't look all that useful though.



-- Edited by Rhinoman on Thursday 18th of March 2010 08:20:21 PM

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Guru

Status: Offline
Posts: 1211
Date:
Permalink


The guy I was working with was called Regressor, he is still working on this, and he has some pretty cool looking software. He only seems to post on the Russian forums:

http://translate.google.co.uk/translate?hl=en&sl=ru&u=http://forums.drom.ru/suzuki-escudo/t1151111878-p2.html&ei=d3KiS87nN8q6jAfM1ZCaCg&sa=X&oi=translate&ct=result&resnum=2&ved=0CA4Q7gEwAQ&prev=/search%3Fq%3Dregressor%2Bsuzuki%2Bobd%26hl%3Den%26safe%3Doff%26rlz%3D1G1TSEH_ENUK354

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Member

Status: Offline
Posts: 12
Date:
Permalink


fordem wrote:

Do you have a link to this russian software?



http://iserverd.khstu.ru/download/ALDLTEST_15625.zip    Work !!(cod ECU1701)

http://iserverd.khstu.ru/download/Suzuki_ALDL_test.zip   Work !!(cod ECU1701)

 ECU 1112 display data with  error.

73! Daniel





-- Edited by zx600 on Thursday 18th of March 2010 06:17:58 PM

__________________
Suzuki Vitara 3P - JX 1996 ( my 1st Dream )
Honda CB-750  F -  1980 (on restauration)
VW  Golf IV 1.6 ( my 2nd dream )


Guru

Status: Offline
Posts: 1211
Date:
Permalink


Unfortunately I don't have a copy of the simulator software, I lost that a few years ago when I had both hard drives crash. I wouldn't have been any good anyway as it used my own protocol which was based on NMEA 0183, I used that on the ECU that I designed myself. For basic testing of my software I used RS232 HexComm tool and I send the data via that. To do that I have to disable the timeout in the software, without the timeout the software will lock up if it receives any bad data. I haven't been at home so I haven't been able to check it, 1112 is the same ECU ID as my Vitara so the software should work. Have you looked inside your ECU? mine has an EPROM and I can remap it.

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Member

Status: Offline
Posts: 12
Date:
Permalink


James: my ECU is 1112 . are possible send me copy of "ECUSIM V1.0" ? by RHINOMAN  .



__________________
Suzuki Vitara 3P - JX 1996 ( my 1st Dream )
Honda CB-750  F -  1980 (on restauration)
VW  Golf IV 1.6 ( my 2nd dream )


Guru

Status: Offline
Posts: 1211
Date:
Permalink


There was a guy in Russia who I worked with a couple of years ago, the 1701 ECU data came from him. He had access to a factory scantool so maybe he has expanded the software that he wrote.
A link would be good.

What is the ID number of your ECU?

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Senior Member

Status: Offline
Posts: 201
Date:
Permalink


Do you have a link to this russian software?

__________________


Member

Status: Offline
Posts: 12
Date:
Permalink


Ok,   try a copy of the   RUSSIAN software for Suzuki Vitaras and work fine!!.

Rinopower (0.5) Not work in my ECU.

Thanks.-

Daniel

__________________
Suzuki Vitara 3P - JX 1996 ( my 1st Dream )
Honda CB-750  F -  1980 (on restauration)
VW  Golf IV 1.6 ( my 2nd dream )


Guru

Status: Offline
Posts: 1211
Date:
Permalink


Line K is OBD2, you should be on pin 9 on an OBD2 connector or on pin M on an ALDL style connector.
Are you getting an ECU ID number in the bottom right hand corner when you press connect?
From the picture that you posted of the display it looks like you are getting data OK at the start and then it is locking up because of bad communications. It should recover automatically from bad data but I have to comment that code out when I test, I will check my code tonight to mke sure that it is not still commented out.
Try using a serial port monitor to see what is happening on the serial port, you can download a trial version from here:

http://www.aggsoft.com/serial-port-monitor.htm

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Member

Status: Offline
Posts: 12
Date:
Permalink


FTDI  ---  FT232R . fine work- Using Line "K"

__________________
Suzuki Vitara 3P - JX 1996 ( my 1st Dream )
Honda CB-750  F -  1980 (on restauration)
VW  Golf IV 1.6 ( my 2nd dream )


Guru

Status: Offline
Posts: 1211
Date:
Permalink


What interface are you using?
Try to connect to the ECU only when the engine is running, sometimes when the vehicle is started the battery voltage drops too low and communication to the PC is lost.

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Member

Status: Offline
Posts: 12
Date:
Permalink


thanks you for the answer,I tried ECU ID 0000 but nothing happens no.-




__________________
Suzuki Vitara 3P - JX 1996 ( my 1st Dream )
Honda CB-750  F -  1980 (on restauration)
VW  Golf IV 1.6 ( my 2nd dream )


Guru

Status: Offline
Posts: 1211
Date:
Permalink


zx600 wrote:
KKKKKKKKK, traduccion error.  My problem is that "Rinoview" version 05, shows  ESU data, and DO NOT renew them. I must restart all again and It shows me the data. All it whit the engine off.
Whit the engine on, Reneview just shows the RPM.
I will look at that it sounds like a communication problem between the ECU and the PC/Laptop, I have only seen this happen when the PC polls too quickly. Can you try running the software with ECU ID set to 0000, that will display the data at the addresses used by the ECU and should eliminate any problems caused by reading data from unadjusted addresses.

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Member

Status: Offline
Posts: 12
Date:
Permalink


Rhinoman wrote:



I still don't understand, do you need to find out which addresses the data is located at? Can you use your C++ programme to query each address in turn? Send 0x13, 0x04, AA, CS
where:
     AA is the address in hexadecimal
     CS is the checksum 0x100 - (0x13 + 0x04 + AA)


-- Edited by Rhinoman on Sunday 14th of March 2010 06:34:40 PM



KKKKKKKKK, traduccion error.  My problem is that "Rinoview" version 05, shows  ESU data, and DO NOT renew them. I must restart all again and It shows me the data. All it whit the engine off.
Whit the engine on, Reneview just shows the RPM.





__________________
Suzuki Vitara 3P - JX 1996 ( my 1st Dream )
Honda CB-750  F -  1980 (on restauration)
VW  Golf IV 1.6 ( my 2nd dream )


Guru

Status: Offline
Posts: 1211
Date:
Permalink


Google Translation:


Spanish to English translationcleardot.gifShow romanization
Hello, I've been spending time with my 1996 engine ECU 8V Vitara single point and now I have succeeded in communicating with the ECU.

ECU Model 33920-70E40 (6H) 15625 bds

I have C + + routine to check the connection port and the software before connecting RhinoView 0.5. Great joy when they succeed in obtaining some data using the method of soft ECU (1112)

Only RPM, Voltage, ATS (C) and 02sensor.

But the problem seems to have the data and represent them in the 0.5 soft Rhinoview data are dynamic, ie should remain frozen when (updated RPM, TPS, etc) any ideas?

Sorry my English is very, very bad. !


ZX600



I still don't understand, do you need to find out which addresses the data is located at? Can you use your C++ programme to query each address in turn? Send 0x13, 0x04, AA, CS
where:
     AA is the address in hexadecimal
     CS is the checksum 0x100 - (0x13 + 0x04 + AA)


-- Edited by Rhinoman on Sunday 14th of March 2010 06:34:40 PM

__________________

1984 Suzuki SJ413K pick up, 1.6 16V Baleno engine
2000 Suzuki Vitara 1.6 8V, many mods
2004 Suzuki Ignis 1.5VVT 4Grip
2006 Suzuki Jimny 1.3VVT JLX+
and many more.



Member

Status: Offline
Posts: 12
Date:
Permalink


Hola, he estado trabajando durante algún tiempo con mi ecus Vitara 1996 motor 8V monopunto y ahora he tenido éxito en la comunicación con la ECU.

Ecus Modelo 33920-70E40 (6H) 15625 bds

Yo alguna rutina en C + + para comprobar la conexión del puerto y el software antes de conectar RhinoView 0.5. Gran alegría cuando tienen éxito en la obtención de algunos datos utilizando el método de ecus suave (1112)

Sólo RPM, Voltaje, ATS (C) y 02sensor.

Pero el problema parece tener los datos y representarlos en el Rhinoview suave 0,5 de los datos son dinámicos, es decir, deberían quedar congelados cuando (actualización RPM, TPS, etc) alguna idea?

Lo siento mi Inglés es muy, muy malo. !!


ZX600


-- Edited by zx600 on Sunday 14th of March 2010 02:48:39 PM

Attachments
__________________
Suzuki Vitara 3P - JX 1996 ( my 1st Dream )
Honda CB-750  F -  1980 (on restauration)
VW  Golf IV 1.6 ( my 2nd dream )
