13800-58B00 MAF characterisation
Permalink



Thank you for sharing, and nice photo of the work bench, thank you again.. :)



-- Edited by pancho on Tuesday 28th of June 2016 02:25:05 AM

__________________


Guru

Status: Offline
Posts: 1187
Date:
Permalink


I've been working on a 58B90 16V Track/Kick ECU so I took the opportunity to pull the MAF data from the ECU.

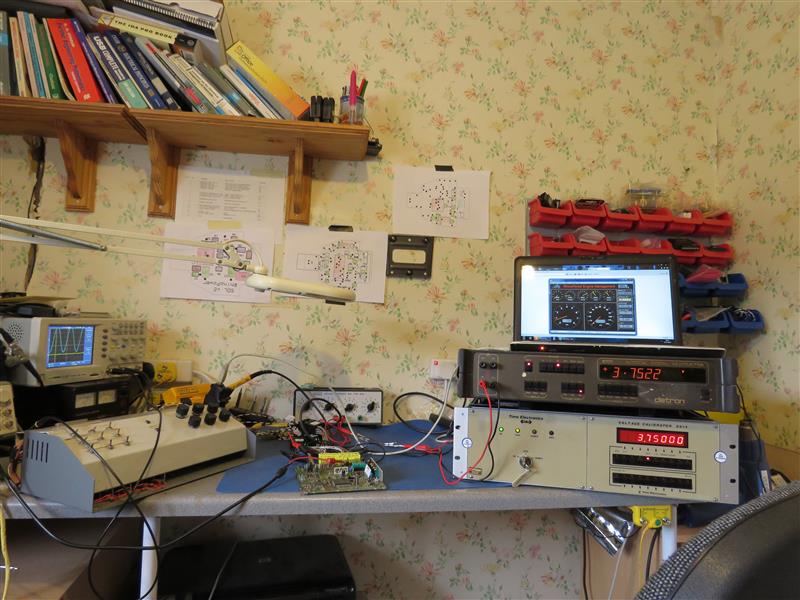

 58B00 MAF test set up

I've seen a dependency on RPM and VE on the value both on the bench and in the code and that was apparent when a full test was performed. Note that there is also a compensation for intake air temperature, these results were taken with IAT = 45C.

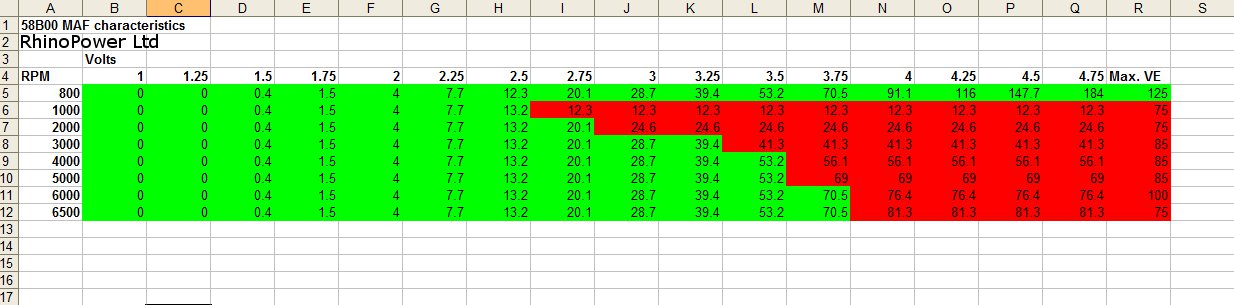

58B00 MAF voltage airflow curve

 The ECU applies a 'credibility check' to the data and during the driving cycle limits the maximum value based on a maximum value of VE, this isn't applied at idle, so the actual data can be recorded and graphed:

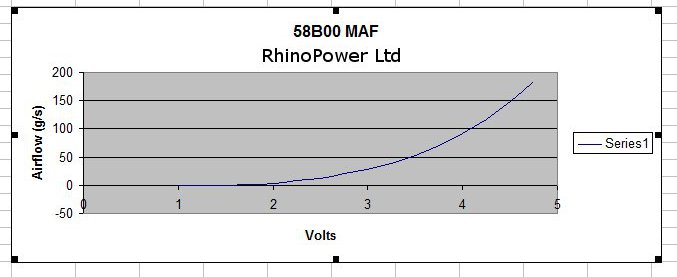

58B00 MAF airflow curve
